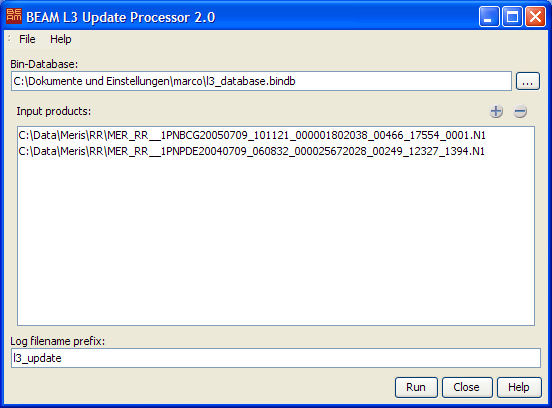

Processor Description - Level 3 Binning Update Processor

The Level 3 Binning Update Processor accumulates any number of input products to the bin database selected.

1. Bin-Database: Select the location of the bin database by either typing the database path into the text field or by pressing the file selection button to invoke a standard file dialog.
2. Input Products: Select any number of input products to be processed. The button invokes a standard file dialog to select input products. The removes all selected products from the list. Click on an item to select it. Press "STRG" and click to add items to the selection. Press "SHIFT" and click to select a range of items.
3. Log filename prefix: Select the prefix text used for the logfile written during processing. For a complete description of the logging capabilities please refer to the logging documentation.

The L3 Update Processor processing request file

The following table describes the L3 Update Processor specific processing request file parameter. For a detailed description of the processing request file concept and file specification please look at the general description section.
