Processor Description - L3 Binning Final Processor

The L3 Final Processor converts a bin database to a final level 3 product by running a finalisation process on the accumulated bins (depending on the needs of the algorithm) and applying a projection (geographic lat/lon) to the binned data cells.

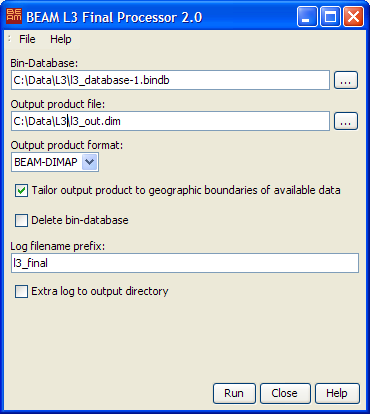

1. Bin-Database: Select the location of the bin database by either typing the database path into the text filed or by pressing the file selection button to invoke a standard file dialog.
2. Output product file: Select the output product file by either typing the product path into the text filed or by pressing the file selection button to invoke a standard file dialog.
3. Output product format: Select one of the available output product formats. Currently only "BEAM-DIMAP" is available.
4. Tailor output product to geographic boundaries of available data: Enable this checkbox to tailor the geopraphic size of the output product to the area that really contains data.
5. Delete Bin Database: Select whether to delete the bin database after final product creation or to keep it (for further products to be added).
6. Log filename prefix: Select the prefix text used for the logfile written during processing. For a complete description of the logging capabilities please refer to the logging documentation.
7. Extra log to output directory: Select whether to write an additional log file to the directory selected for the output product.

The L3 Final Processor processing request file

The following table describes the L3 Final Processor specific processing request file parameter. For a detailed description of the processing request file concept and file specification please look at the general description section.
